View Issue Details

This bug affects 2 person(s).
 10
IDProjectCategoryView StatusLast Update
18865Bug reportsTheme editorpublic2023-06-12 09:36
Reportermaxersloan Assigned To
PrioritynoneSeveritypartial_block
Status confirmedResolutionopen
Product Version5.6.x
Summary18865: Theme config : unable to use <remove> to remove css file
Description

"Break Tables" Theme option does not work

When you want to force an array to be shown as a table on all devices (in other words, don't break tables for mobile), the setting "Break Tables" within Theme options should be set to OFF. However, the tables still break on mobiles and/or small screens. I'm using 'Fruity' theme.

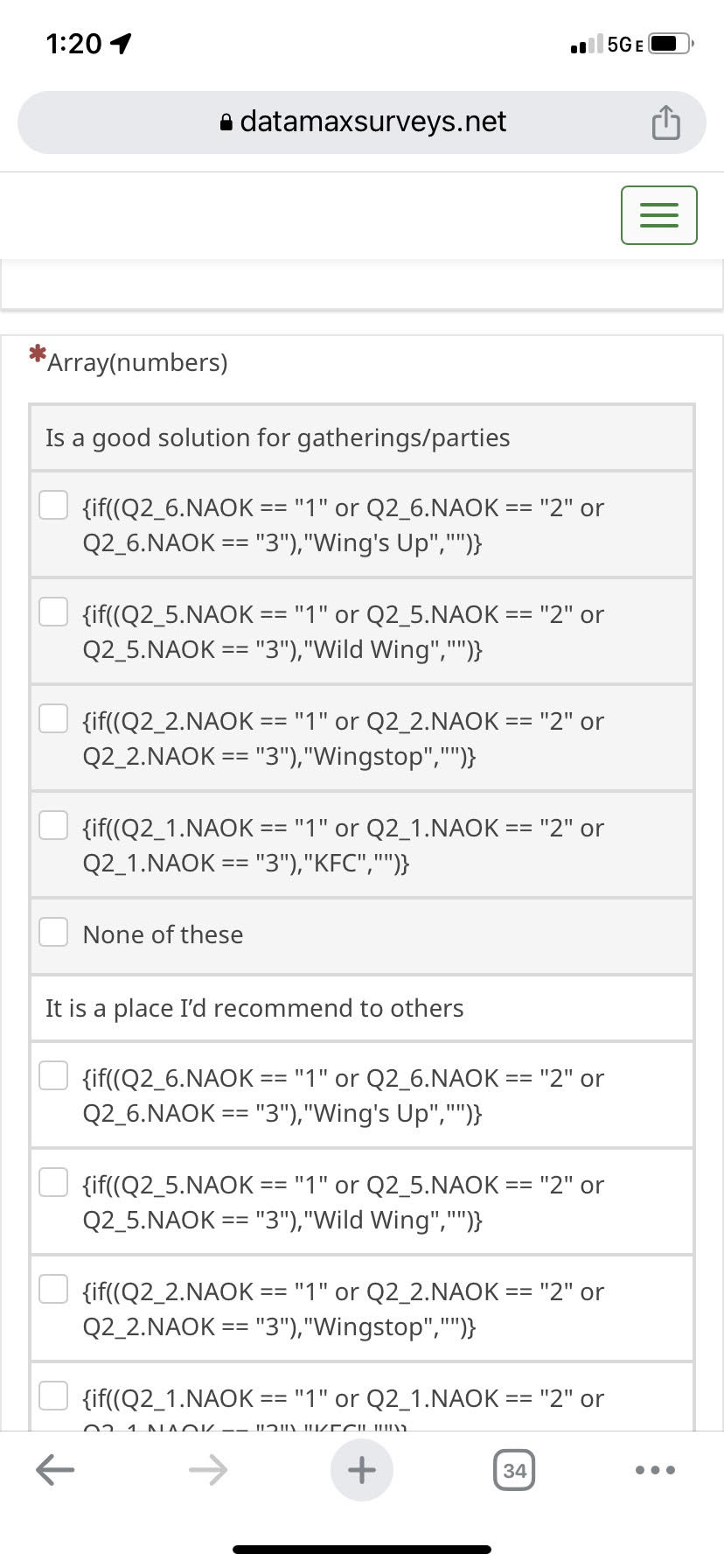

It is especially problematic because I'm using equations to define column names. For some reason the equations show when the tables break, but not when shown in a table. So I want to force all devices to show the table.

In the attached LLS, the array is Q4.

Steps To Reproduce

Steps to reproduce

Create array. Turn "Break Tables" to OFF within theme options. Use fruity theme.

Expected result

Expect to see array (table) on all devices.

Actual result

Actually the array still breaks into multiple questions on mobile devices.

TagsNo tags attached.
Attached Files
Bug heat10
Complete LimeSurvey version number (& build)Version 5.6.25+230605
I will donate to the project if issue is resolvedYes
Browser
Database type & versionDon't know
Server OS (if known)
Webserver software & version (if known)
PHP VersionDon't know

Relationships

related to 18833 closedDenisChenu mobile phone issue with formulas on columns headings with array numbers on checkbox layout

Users monitoring this issue

There are no users monitoring this issue.

Activities

Mazi

Mazi

2023-06-07 19:59

updater   ~75470

I can reproduce the problem. The theme option at the fruity theme does not seem to have any effetc on the array questions.

@DenisChenu, I am assigning this one to you since you probably know this part best.
Do you use a similar feature at your famous skelvanilla theme so we could test that as an alternative? This user needs to launch the survey soon and for him it is a must-have feature.

DenisChenu

DenisChenu

2023-06-08 08:28

developer   ~75471

Unsure of usage of same system, but i take a look this morning :)

Maybe fix the {} at the same time

@maxersloan : did you report the { } issue too ? If you find the issue number

Mazi

Mazi

2023-06-08 11:31

updater   ~75472

Thanks for looking into this, @DenisChenu!

The issue with a missing replacement for EM placehoders/syntax on smaller devices seems like a different issue but I have seen that being reported by others.

DenisChenu

DenisChenu

2023-06-08 11:51

developer   ~75473

Yes : i tale it too : https://bugs.limesurvey.org/view.php?id=18833

DenisChenu

DenisChenu

2023-06-08 17:00

developer   ~75482

Please :

  1. A survey with only a table question
  2. Set break table at survey level, not at global level
DenisChenu

DenisChenu

2023-06-08 17:07

developer   ~75483

Last edited: 2023-06-08 17:16

It's not a Theme issue …
<remove>cssfile</remove> didn't work.

DenisChenu

DenisChenu

2023-06-08 17:20

developer   ~75484

In any condition https://github.com/LimeSurvey/LimeSurvey/blob/a5e20dcb68e0f3d902eb21fe47c52b1a86107386/themes/survey/fruity/config.xml#L51

css/noTablesOnMobile.css is still present.

A quick fix can be add this css file empty in fruity. But i think remove must be OK in 5.X too.

Mazi

Mazi

2023-06-08 22:09

updater   ~75499

@DenisChenu, so if we create a fruity child theme and replace the css/noTablesOnMobile.css file with an emptsy one, this should be a work around to fix this?

DenisChenu

DenisChenu

2023-06-09 09:33

developer   ~75507

Yes,

Currently : it's a more complex fix. And i really don't understand all of this Spaghetti code for Template option …
Don't want to try to understand during one week or more …

DenisChenu

DenisChenu

2023-06-09 09:35

developer   ~75508

PS : i need to review totally skelvanilla system … i surely need to remove manually some css
https://gitlab.com/SondagesPro/SurveyThemes/skelvanilla/-/blob/master/config.xml#L29-39

Mazi

Mazi

2023-06-09 16:18

updater   ~75526

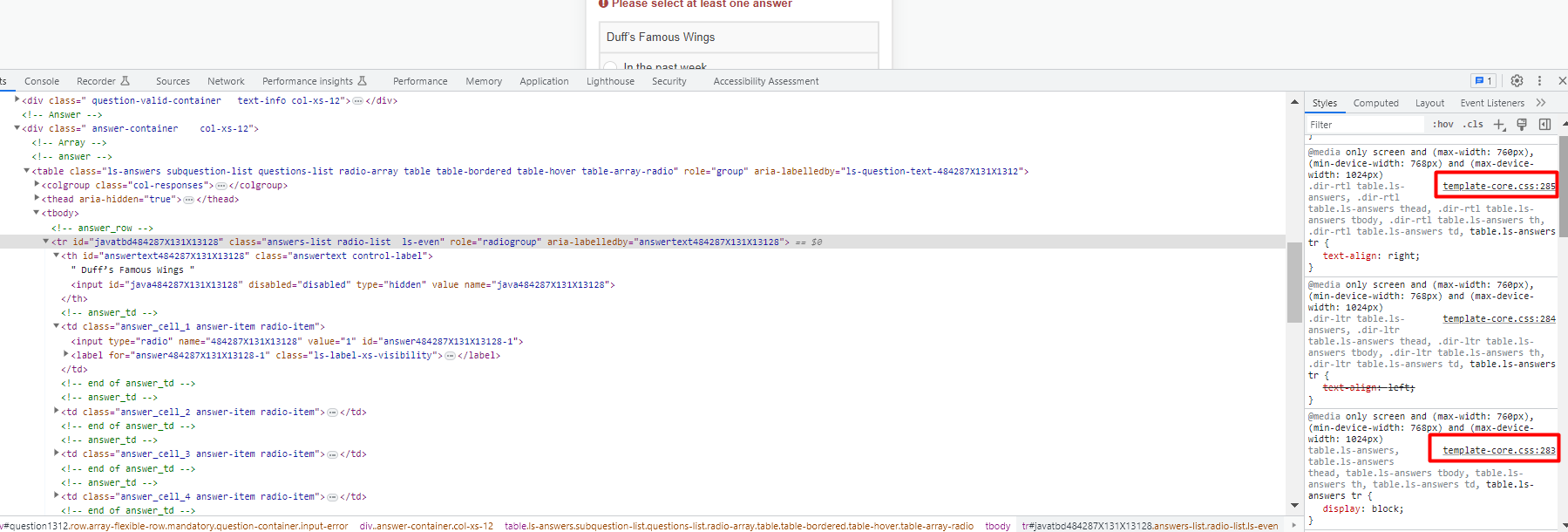

@DenisChenu, I tried the approach of adding an empty noTablesOnMobile.css file. But to me it looks like the code for turning the tables into single choice question on mobile devices resides at the template-core.css file, see screenshot?!

DenisChenu

DenisChenu

2023-06-09 16:31

developer   ~75528

Arg, it's worst than i think then …
Sorry …

2 fix to do

  1. Remove must work
  2. Move all of this logic in noTablesOnMobile
  3. Add test because if it broke again, no need to add functionality …
Mazi

Mazi

2023-06-09 16:32

updater   ~75529

Yep, definitely makes sense to split this up.

Mazi

Mazi

2023-06-09 16:34

updater   ~75530

How could we work around that? Have CSS at the custom.css which overwrites the code from template-core?
Sounds pretty complex to me :-(

DenisChenu

DenisChenu

2023-06-09 16:49

developer   ~75531

Copy and update template-core.css in user theme seems quickest , no ?

Mazi

Mazi

2023-06-12 09:36

updater   ~75537

Well, there are many CSS blocks in there and it will be tricky to pick the correct ones for the array split up feature.

Or maybe someone already worked on something like this? Do you remember if there are similar forum topics?
