IDProjectCategoryView StatusLast Update
15430Bug reportsStatisticspublic2019-11-11 16:01
ReporterMazi Assigned Top_teichmann
Status closedResolutionfixed
Product Version3.19.2
Summary15430: Bars at statistics are often hardly visible / Wrong bar colors

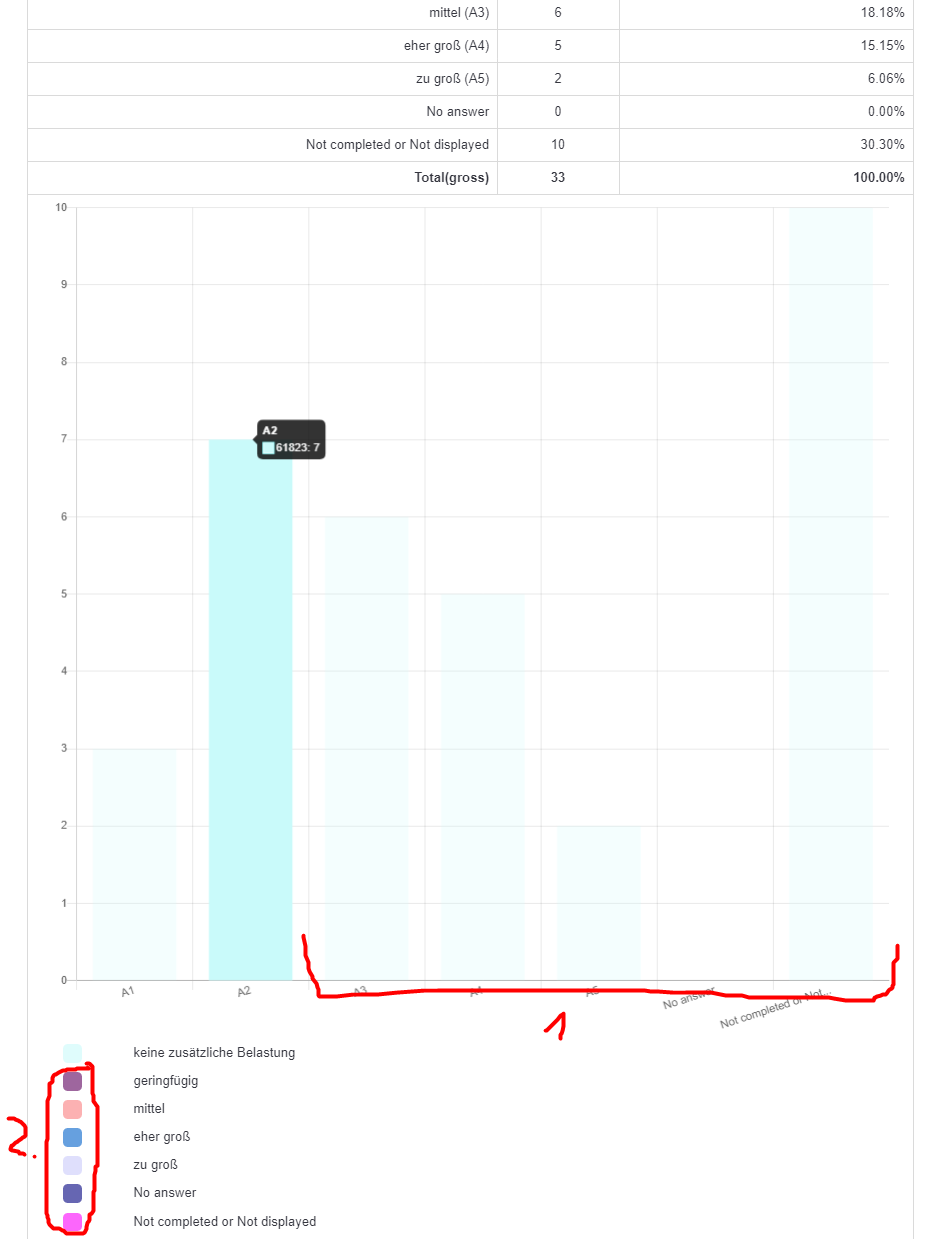

  1. When showing charts at the statistics feature some of the bars are hardly visible. Only when hovering a bar with the mouse, the bar is shown in a darker way, see attached screen shot.

  2. The bar chart uses the color of the first bar for all bars. According to the legend, there should be multiple, different colors, see screenshot.

Steps To Reproduce

Call the statistics featrue with a survey with multiple questions. Enable "View summary of all fields" and "Show graphs". Then check the graphs. Some bars are visible, other use very light colors and can sometimes hardly be seen.

TagsNo tags attached.
Complete LimeSurvey version number (& build)3.19.2
I will donate to the project if issue is resolvedNo
Sync to Zoho Project
Database & DB-VersionMySQL 5
Server OS (if known)Ubuntu 14 TLS
Webserver software & version (if known)Apache 2
PHP Version7.2


child of 15378 closedp_teichmann Color randomization in expert statistics (issue)




2019-10-21 09:11




2019-10-21 09:12

partner   ~54125

@cdorin, this is an issue that should be simple to fix. Since a customer uses these statistics a lot and sometimes bars can't be seen, can you assign this with proper priority?



2019-10-21 09:16

partner   ~54126

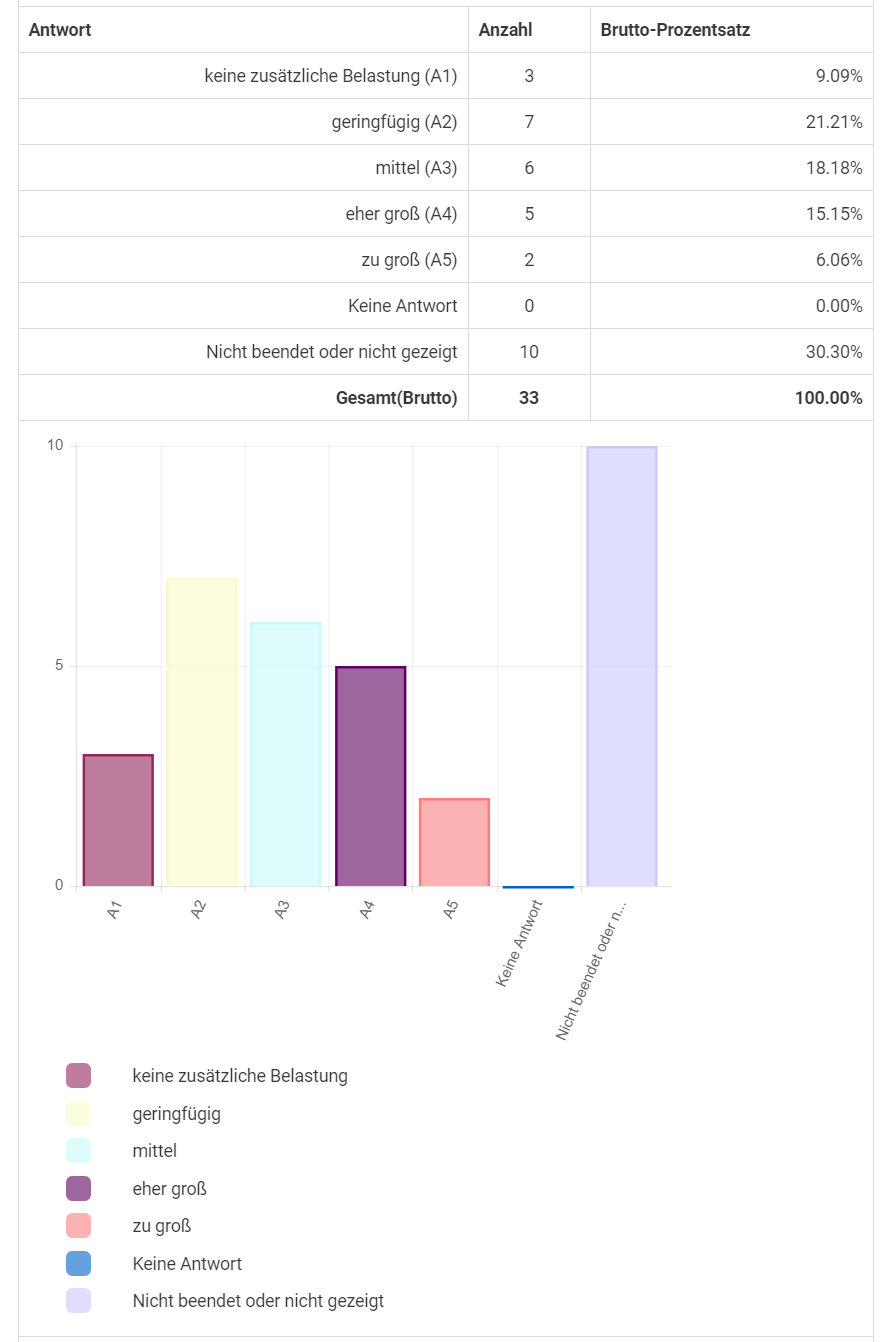

I just tested with an older version (3.17.7) and there both issues did NOT show up. Even the tooltip for a bar looks better, see screenshot.



2019-10-30 09:07

partner   ~54260

@cdorin, this is a fix required urgently by one of our customers. Is there a chance to include the fix to the next release?

If you lack resources, can you point me to the file that needs to be adjusted? As outlined above, at a previous version this looked fine so that seems to have been changed recently. Maybe you find the related commit and can hand us a link so we can try providding a fix?



2019-11-08 16:11

administrator   ~54487

Last edited: 2019-11-08 16:15

View 2 revisions

Fix committed to master branch:



2019-11-11 14:55

administrator   ~54519

Fixed in Release 3.20.0+191112



2019-11-11 16:01

partner   ~54523

Working fine now, thanks for fixing, p_teichmann!

Related Changesets

LimeSurvey: master a6055c22

2019-11-08 16:10:21


Details Diff
Fixed issue 15430: Bars at statistics are often hardly visible / Wrong bar colors Affected Issues
mod - application/helpers/admin/statistics_helper.php Diff File
mod - application/views/admin/export/generatestats/_statisticsoutput_graphs.php Diff File
mod - assets/scripts/admin/statistics.js Diff File
