View Issue Details

IDProjectCategoryView StatusLast Update
13668Bug reports[All Projects] Otherpublic2018-06-15 14:27
ReporterhughswannAssigned Tomarkusfluer
Status closedResolutionfixed
Product Version3.7.x
Target VersionFixed in Version
Summary13668: Theme Options- custome Brandlogo fails to show the image preview and fails to show on the survey page.
DescriptionOn a survey's settings use the Theme options page. "Survey options for theme bootswatch" / "SimpleOptions" tab
I can upload a brandlogo file.
The Advanced Options then has shows Options value {"general_inherit":1,"brandlogofile":"/limesurvey/upload/themes/survey/generalfiles/my_logo.png","brandlogo":"on","ajaxmode":"inherit"}.

"/survey/upload/themes/survey/generalfiles/my_logo.png" is the correct url of the uploaded file.

BUT, the preview button fails to show the image, it has a wrong url
(this is the absolute filepath, not the server path to the uploaded image)

AND, on the survey page the logo fails to show, just the Alt text
  <img class="logo img-responsive" src="" alt="Survey1">
with the src attribute an empty string instead of the url.
Steps To Reproduce
On a survey's settings use the Theme options page.

Try to set a brandlogo, it doesn't show in the preview button, and doesn't show on the survey preview page or live survey page.

Additional InformationLimesurvey is a great app, thank you.

Can be reproduced using any theme.
We have limesurvey is in a subfolder "/survey".
In the config We have:
'urlManager' => [
        'urlFormat' => 'path',
        'rules' => [
            // You can add your own rules here
        'showScriptName' => false,

I overcame this bug (Or config problem?) by appending some css where is shouldn't be.
Complete LimeSurvey version number (& build)Version 3.7.1+180424 AND ALSO Version 3.7.2+180508
I will donate to the project if issue is resolvedNo
Database & DB-Version10.1.28-MariaDB AND ALSO mysql 14.14
Operating System (Server)Ubuntu debian-linux-gnu (x86_64)
Webserver software & version Apache/2.4.18 AND ALSO Apache/2.4.7 (Ubuntu)
PHP Version5.6 AND 7.1




2018-05-16 11:38

manager   ~47605


yes, that's really wrong.
please for now, just enable the asset manager, it should solve the problem
You can do it by turning off debug mode or by adding 'use_asset_manager'=>true, in your config


2018-05-30 16:01

manager   ~47921

fixed by markus


2018-06-07 17:21

reporter   ~48021

This is also broken in 3.9.0+180604 -- has the fix not yet made it to stable?


2018-06-08 10:32

reporter   ~48029

Have the same problem. Also adding 'use_asset_manager'=>true, in config did not help.


2018-06-08 13:26

manager   ~48032

bernd138: just update


2018-06-08 13:41

reporter   ~48033

LouisGac: What should I update? I have version 3.9.0+180604 installed. ComfortUpdate does not show a later version.


2018-06-10 21:41

reporter   ~48036

I'm also having problems on version 3.9.0+180604.

Limesurvey installation on our vserver has the same image URL problems as described in the initial bug report. Image display and preview is broke.

Image URL is: ""
Image URL should be: "" (can be opened when adjusting the URL manually)

Limesurvey installation on my personal webspace also has issues after updating to 3.9.0+180604 using ComfortUpdate. Preview works here, but logo is not displayed and Browser shows no Image URL in source.


2018-06-13 11:44

reporter   ~48077

I have the same issue with 3.9.0+180604 too. The default themes like fruity shows both the logo and background preview fine but when extended, the logo preview in the extended theme doesn't show. The uploaded logo doesn't show in all surveys.


2018-06-13 11:51

manager   ~48078

it should has been fixed in latest release.


2018-06-13 12:02

reporter   ~48079

Is the latest release out? Comfortupdate doesn't show that there is a new update.


2018-06-13 12:57

reporter   ~48082

I just manually updated to Version 3.11.0+180612 and ported my themes over. The issue seems to still persist. The logo still doesn't show - only the survey title appears.

I tried creating a new extend theme of fruity and the I am still seeing the same result. The preview image doesn't work for the logo and any uploaded image doesn't appear in the survey too.


2018-06-13 13:13

manager   ~48083

wait: if the survey title appears, it means that the logo is off in the options.


2018-06-13 13:26

reporter   ~48084

I am quite sure that the logo was set to "on" in the theme options earlier but I have just tried again anyway. The preview works for the default fruity theme though. When I tried to upload an logo.png or jpg to the fruity theme, preview works but logo still doesn't show on the survey page.

When I extended the fruity theme, the preview doesn't work anymore and the logo doesn't appear on the survey page too.

I just happened to rename the extended theme earlier and it crashed the /themeoption page and gives an error message "server error - the theme "xxx" is not installed". I had to use the browser's back navigation and rename the theme page. Back to normal after that.


2018-06-13 13:28

manager   ~48085

that doesn't answer to my question.
could you please check that the logo option is actually on?

And yes: don't rename folders.


2018-06-13 13:36

reporter   ~48086

1) Yes. the logo option is set to "on". But the logo doesn't show. Only the survey title shows whether the logo option is on or off.

2) I did not rename the folder. I used the "rename" function / button in the theme's page and it crashed the /themeoption page.


2018-06-13 14:26

manager   ~48087

2) ok, that's really wrong.

For the logo thing, can you please attach a screenshot of the source of your webpage?
(in chrome: start the survey, then ctrl + u )
I'd like to see what is the src of the image tag.
(or can you share a url?)


2018-06-13 14:59

reporter   ~48089

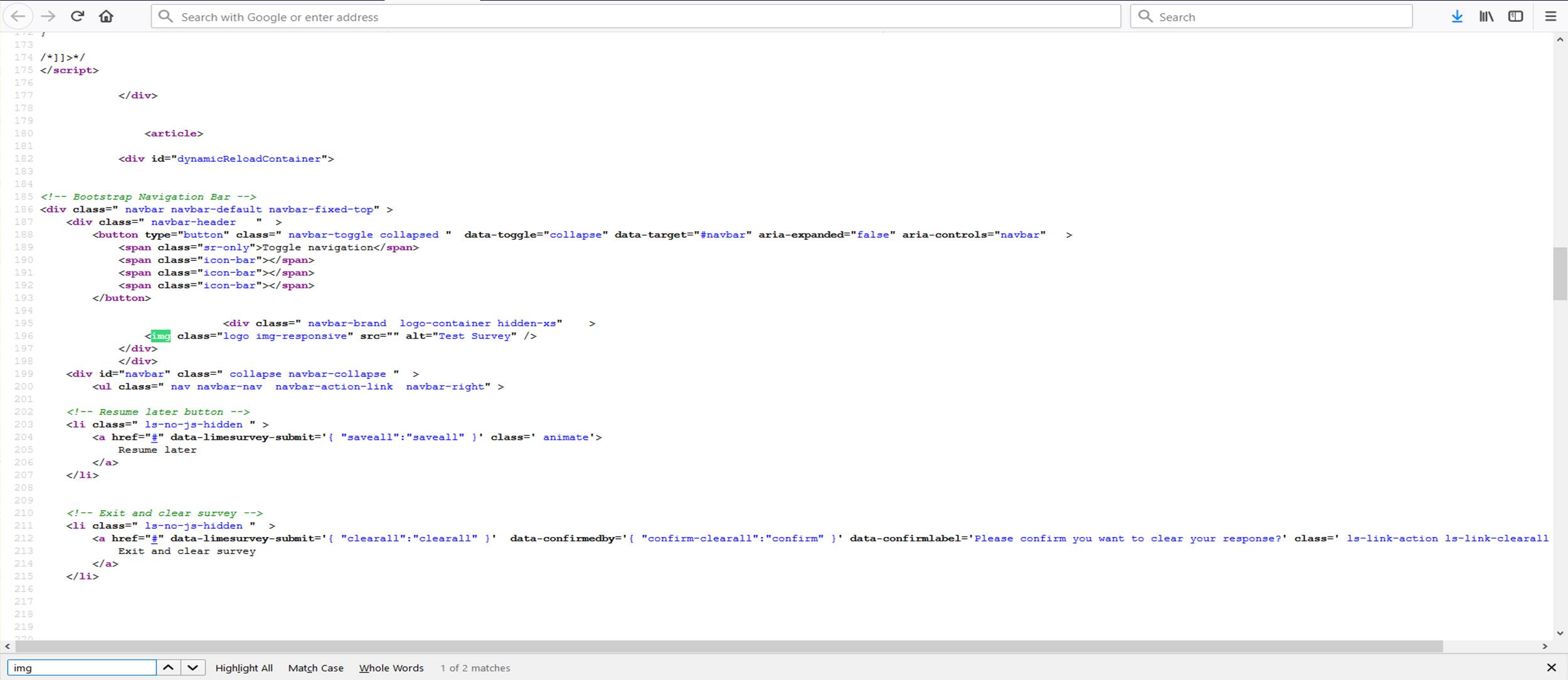

This is what I got so far with logo option "on".

<img class="logo img-responsive" src="" alt="Test Survey" />



2018-06-13 15:12

manager   ~48090

this happen when logo is on but not logo selected
can you check that your survey level, theme options has a picture defined?


2018-06-13 15:19

reporter   ~48091

yes, at survey level, I have selected "on" for logo instead of "inherit" but the logo still doesn't show. The src is still "". Only the alt "Test Survey" shows.


2018-06-13 15:19

manager   ~48092

next to the logo on/off, there is dropdown select to choose your logo.
can you check that there is indeed a logo selected?


2018-06-13 15:44

reporter   ~48093

yes it shows the title of the logo in the dropdown. The preview doesn't work though.


2018-06-13 16:52

reporter   ~48095

Our vServer:
Everything fine now.

My personal webspace:
Problem still persists. I deleted limesurvey (including all mysql-tables) and set up a new installation, but that did not change anything.


2018-06-13 17:20

reporter   ~48096

This happened to us when I was trying to rename a theme in the theme options and the page just crashed. I tried many ways to access the theme options but couldn't. Hence I decided to uninstall and reinstall limesurvey on our server. The issue of the logo only surfaced after I did a fresh install of version 3.90.


2018-06-13 17:21

reporter   ~48097

Kanedat: what did you do to resolve the issue on your server?


2018-06-14 10:52

reporter   ~48105

Still can't get it to work. Reinstalled 4 times but nothing seem to work. The workaround I did was to remove the "IF" "ELSE" section on "logo" from the nav-bar.twig and manually insert the img src.


2018-06-14 14:35

reporter   ~48110

Only performed an upgrade to 3.11.0+180612 and that fixed the issue on our vserver.

Seems like the server configuration of my personal webspace interfers with the fix in the latest version.


2018-06-15 14:27

administrator   ~48123

New version released.
