View Issue Details

Jump to NotesJump to History
This bug affects 1 person(s).
 10
IDProjectCategoryView StatusDate SubmittedLast Update
11523Bug reportsSurvey takingpublic2016-08-05 12:092016-08-29 12:39
ReporterMazi Assigned Tomarkusfluer
PriorityurgentSeverityminor
Status closedResolutionfixed
Product Version2.50.x
Target Version2.50.xFixed in Version2.50.x
Summary11523: Sub-question text far too small on mobiles for some array questions
Description

The new shipped templates scale very well on mobile devices, great work.

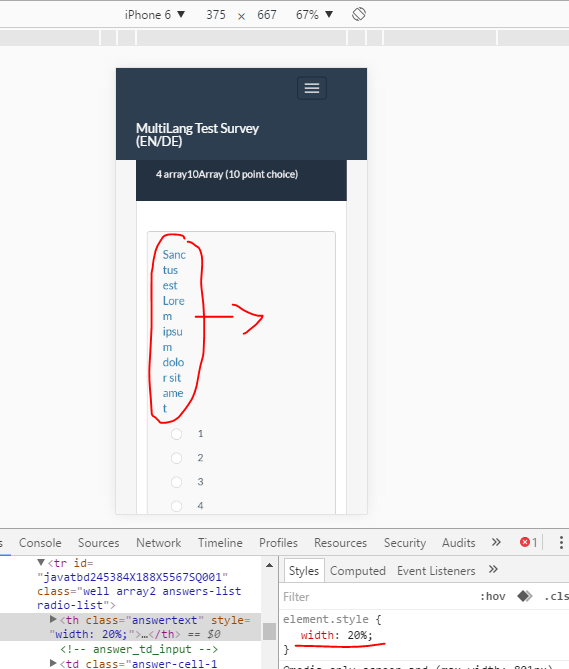

When splitting the tables of some array questions into smaller sections using the no-more-tables feature, the sub-question text of some questions only takes very few of the available space and that looks messed up, see uploaded screenshot.
Test link: http://ls25.mysurveyhosting.com/index.php/245384?newtest=Y&lang=en

Steps To Reproduce

Import the attached survey and run it on a mobile or emulate mobile using developer tools.

Additional Information

Affected question types seem to be:

  • Array 10 point
  • Array 5 point
  • Array Numbers
TagsNo tags attached.
Attached Files
limesurvey_survey_245384.lss (363,514 bytes)
Bug heat10
Complete LimeSurvey version number (& build)160804
I will donate to the project if issue is resolvedNo
BrowserChrome
Database type & versionMySQL 5
Server OS (if known)Ubuntu
Webserver software & version (if known)Apache 2
PHP Version5.5.9

Relationships

Relationship GraphDependency Graph
related to 11559 closedmarkusfluer Layout problem with bipolar answers/labels for matrix

Users monitoring this issue

There are no users monitoring this issue.

Activities

LouisGac

LouisGac

2016-08-05 14:54

developer   ~40194

not 100% sure, but I thing those 20% are set in the question attributes.
But maybe we should just not take it in account for xs display.
Mazi

Mazi

2016-08-05 20:29

updater   ~40196

Louis, that would be a reasonable explanation but I have checked, there is no such attribute set.
...and if it would be set, we should ignore it for this mobile layout, good idea!
DenisChenu

DenisChenu

2016-08-10 10:47

developer   ~40220

Fixed here : https://github.com/Shnoulle/LimeSurvey-Shnoulle/commit/44b602902d07fa543fcb5e3341847756a81b9110

Just do it like array question type : add the answer width in column only, not in the cell.

Temporary template solution : https://github.com/Shnoulle/LimeSurvey-Shnoulle/commit/dc72e99f9b7e2d60b2fbc448e394b7d93c28f03a#diff-ed0951e7a3b1d0add348df7bab8341afR531
markusfluer

markusfluer

2016-08-24 10:40

administrator   ~40415

I fixed this with temporary workaround and setting width: 100% important on under 801px screen width. It's not pretty but the templates will be remade anyway.
c_schmitz

c_schmitz

2016-08-29 12:39

administrator   ~40553

Version 2.51.0 Build 160829 released

Issue History

Date Modified Username Field Change
2016-08-05 12:09 Mazi New Issue
2016-08-05 12:09 Mazi File Added: sqtext.png
2016-08-05 12:10 Mazi File Added: limesurvey_survey_245384.lss
2016-08-05 12:11 Mazi Additional Information Updated
2016-08-05 14:54 LouisGac Note Added: 40194
2016-08-05 20:29 Mazi Note Added: 40196
2016-08-08 10:13 c_schmitz Priority none => urgent
2016-08-10 10:47 DenisChenu Note Added: 40220
2016-08-10 15:56 markusfluer Assigned To => markusfluer
2016-08-10 15:56 markusfluer Status new => assigned
2016-08-24 10:40 markusfluer Note Added: 40415
2016-08-24 10:40 markusfluer Relationship added related to 11559
2016-08-24 10:40 markusfluer Status assigned => resolved
2016-08-24 10:40 markusfluer Fixed in Version => 2.5
2016-08-24 10:40 markusfluer Resolution open => fixed
2016-08-29 12:39 c_schmitz Note Added: 40553
2016-08-29 12:39 c_schmitz Status resolved => closed
