Summary13437: simple statistics looks odd
Description

Simple statistics. Several charts looks very odd.

Steps To Reproduce

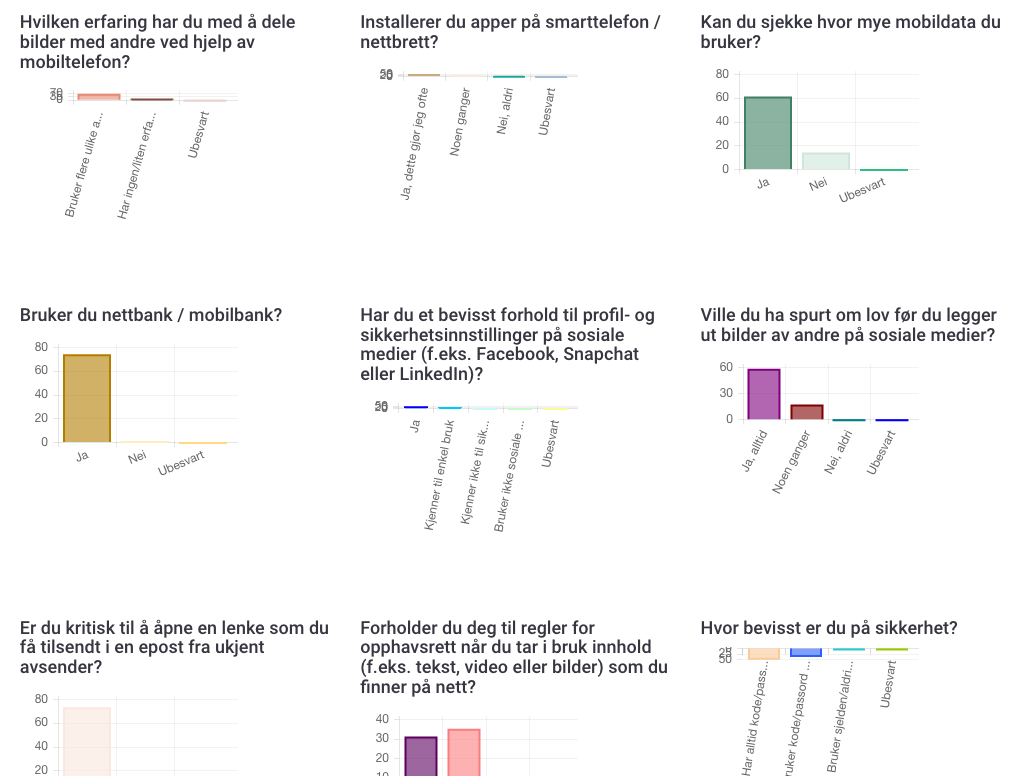

Import enclosed lsa and try to run simple statistics. It looks like the screenshot.

TagsNo tags attached.
Attached Files
Skjermbilde 2018-03-02 kl. 20.18.38.png (101,911 bytes)
Skjermbilde 2018-12-29 kl. 14.02.22-2.png (145,422 bytes)
Bug heat12
Complete LimeSurvey version number (& build)3.4.3+180227
I will donate to the project if issue is resolvedNo
BrowserChroe
Database type & versionall
Server OS (if known)all
Webserver software & version (if known)all
PHP Versionall

Relationships

Relationship GraphDependency Graph
duplicate of 14613 closedcdorin simple statistic looks odd
related to 16620 closedgabrieljenik simple statistics looks odd

Users monitoring this issue

There are no users monitoring this issue.

Activities

pmonstad

pmonstad

2018-03-02 20:21

updater   ~46876

And the lsa file

survey_archive_759176.lsa (11,751 bytes)
markusfluer

markusfluer

2018-03-07 09:16

administrator   ~46936

I have trouble reproducing this right now.
Can you describe your settings a bit more?
pmonstad

pmonstad

2018-03-07 10:02

updater   ~46938

I do not use any non-standard settings. I run this survey on 2.6.x release and imported the survey into 3.x release to do some testing.
csknfrt

csknfrt

2018-03-27 16:46

reporter   ~47238

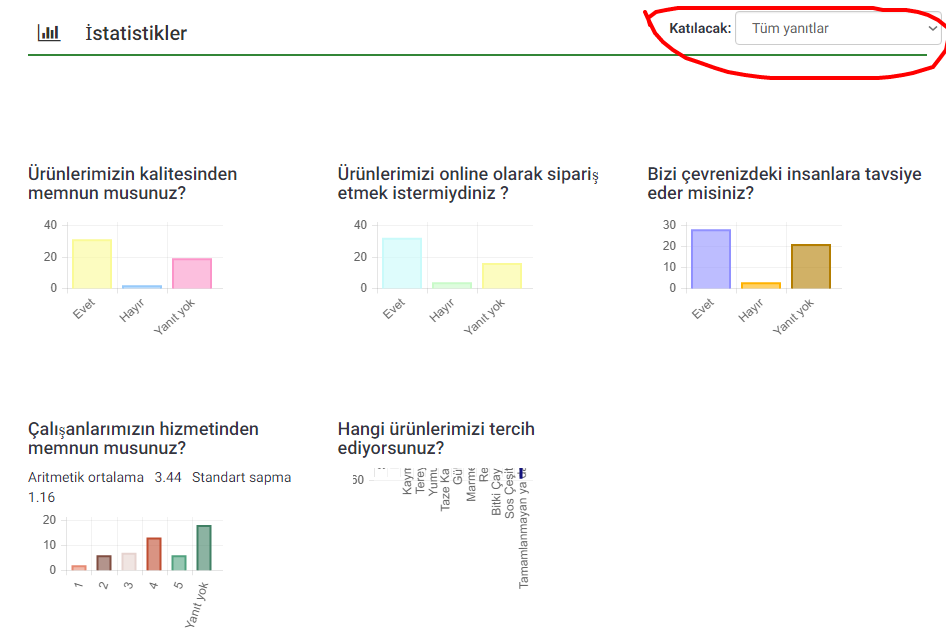

when you select "All Answers" it will appear. You may need to try more than one.
LS version 3.5.4

pmonstad

pmonstad

2018-05-27 22:14

updater   ~47867

This one is still not fixed. Statistic graphs are useless in simple mode.
pmonstad

pmonstad

2018-12-29 14:04

updater   ~50080

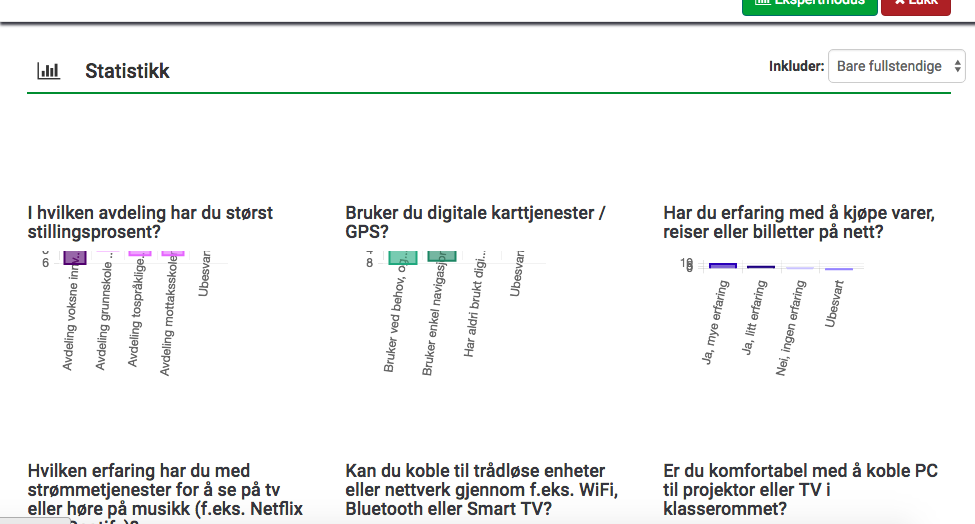

Still not fixed. Simple statistics are in many cases useless as graphs are not whown correct.

Skjermbilde 2018-12-29 kl. 14.02.22.png (145,422 bytes)
pmonstad

pmonstad

2019-05-15 21:04

updater   ~51956

duplicate of 14613
Mazi

Mazi

2019-10-21 09:00

updater   ~54123

@cdorin, this issue is reported frequently by various users. If the question labels are too long, the chart simply looks bad. A simple function to cut off the labels after e.g. 50 characters would fix this. Alternatively, we could show the question code only or as an additiona in front of the text.
Maybe we can also use tooltips to show the full texts?

There are surveys where you can't use this feature at all due to longer answers texts.
gabrieljenik

gabrieljenik

2020-08-28 18:08

manager   ~59663

Made the view responsive and have 1, 2 columns or 3 depending on the screen width.
Made the legends to be below the chart, and not on its right side.

PR: https://github.com/LimeSurvey/LimeSurvey/pull/1567
gabrieljenik

gabrieljenik

2020-10-09 11:51

manager   ~60135

Fix committed to 3.x-LTS branch: http://bugs.limesurvey.org/plugin.php?page=Source/view&id=30563
lime_release_bot

lime_release_bot

2020-10-12 09:31

administrator   ~60154

Fixed in Release 3.24.0+201013

Related Changesets

LimeSurvey: 3.x-LTS 5f11205c

2020-08-28 20:05

gabrieljenik

Committer: user234287


Details Diff		 Fixed issue 13437: simple statistics looks odd

Made the view responsive and have 1, 2 columns or 3 depending on the screen width.
Made the legends to be below the chart, and not on its right side.		 Affected Issues
13437
mod - application/helpers/admin/statistics_helper.php Diff File
mod - application/views/admin/export/generatestats/simplestats/_statisticsoutput_graphs.php Diff File
mod - application/views/admin/export/generatestats/simplestats/_statisticsoutput_header.php Diff File
